  • A graphical lesson on why W11 has processor requirements

    Home » Forums » AskWoody support » Windows » Windows 11 » Hardware questions relating to Windows 11 » A graphical lesson on why W11 has processor requirements

    Author
    Topic
    #2395795

    Hey Y’all,

    So after watching a Video from MS about VBS (Virtualization-based security) I decided to try it on my not ready for prime time Windows 10 main driver.

    Specs:

    Item                    Value
    ----                    -----
    Manufacturer            Dell Inc.
    Model                   XPS 8920
    System Type             x64-based PC
    Enclosure               Desktop
    BIOS Serial No          2Z5PHH2
         Name               1.0.23
         Version            1.0.23
         Date               6/10/2020 20:00
         Manufacturer       Dell Inc.
         Creator            American Megatrends
    Firmware Type           UEFI
    Secure Boot UEFI        Enabled
    Trusted Platform Module Present

    Item                    Value
    ------                  -----
    Processor Name          Intel(R) Core(TM) i7-7700 CPU @ 3.60GHz
      Code Name             Kaby Lake
      Info                  Intel64 Family 6 Model 158 Stepping 9
      Maker                 GenuineIntel
      ID                    BFEBFBFF000906E9
      Max CPU Speed         3.6 GHz
      Physical CPUs         1
      Physical Cores        4
      Logical  Cores        8
      Address Width         64
      HyperThreading        Enabled
      VM Firmware           Disabled
      Socket                U3E1

    Memory Information:
                         Bank             Data  Size
        MB Slot     Bank Pos  Type Speed Width  / GB Manufacturer Serial No.
       --------     ---- ---- ---- ----- ----- ----- ------------ ----------
    ChannelA-DIMM1        1   DDR4  2400    64  8.00 SK Hynix     2878875B
    ChannelB-DIMM1        2   DDR4  2400    64  8.00 SK Hynix     28788735

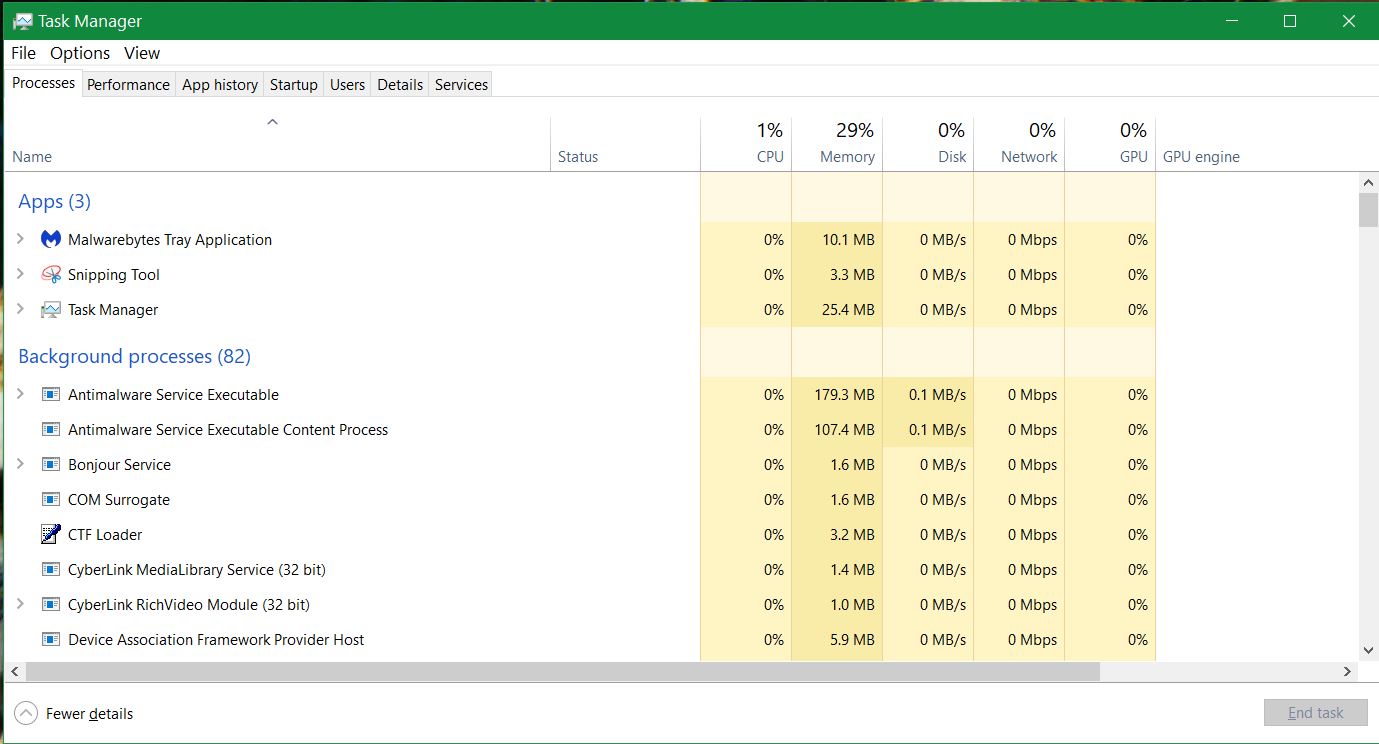

    So here’s my machine at idle with the only program running being the Snipping Tool and Task Manager.
    XPS8920VBSDisabled

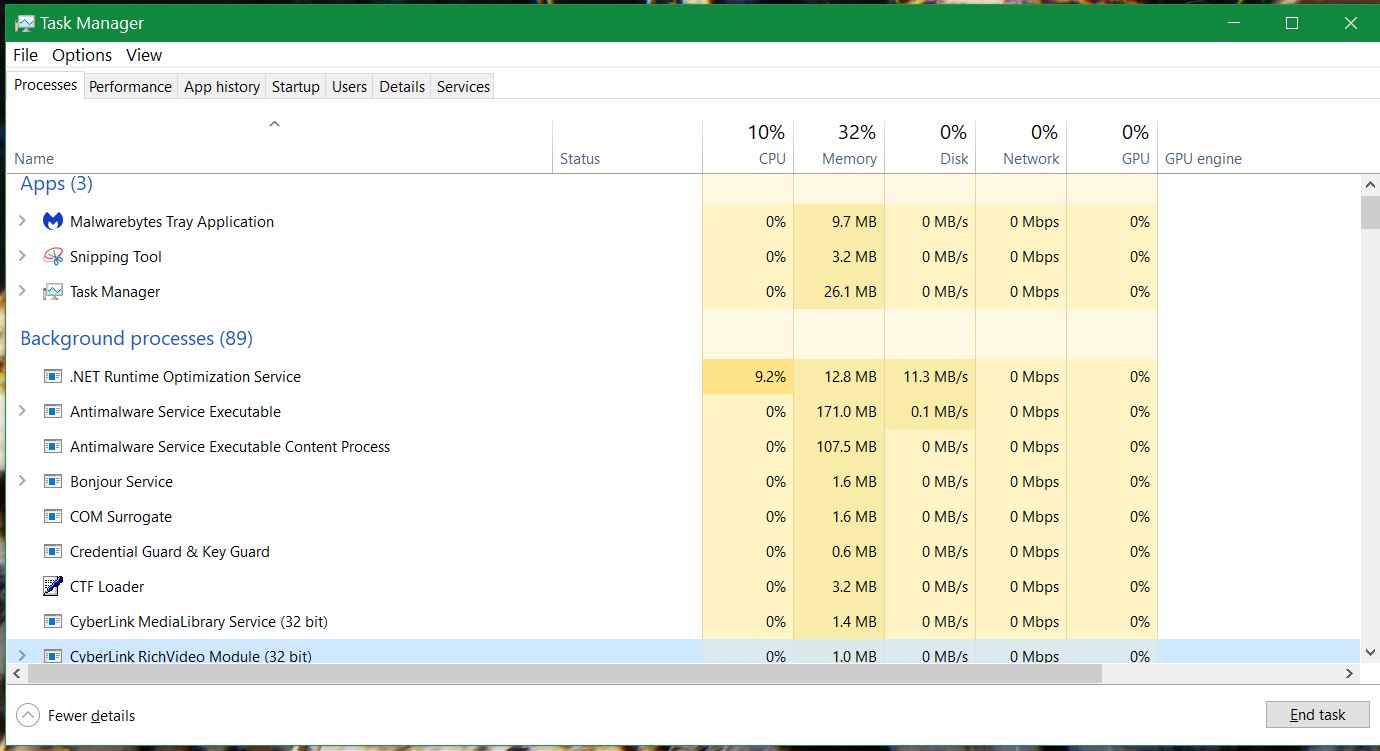

    So with the baseline established I enable VBS using Microsoft’s DG Readiness Tool Version 3.6 and then reboot and load the same two programs and wait 10 minutes for things to settle down.
    XPS8920VBSEnabled
    Note: that 10% CPU usage is the average! It did get as low as 6% momentarily and as high as 20% for longer periods. Again this is at IDLE!

    So No Windows 11 for this machine EVER! YMMV!

    HTH

    May the Forces of good computing be with you!

    RG

    PowerShell & VBA Rule!
    Computer Specs

    2 users thanked author for this post.
    Viewing 5 reply threads
    Author
    Replies
    • #2395922

      With the .NET optimization service taking 9.2% of the 10% I’d say there is some serious transient processing going on. The .NET optimization is generally run when new or updated modules are installed to optimize for your setup. I’d be a little surprised if VBS was .NET based. In my experience .NET optimization often takes longer than I expect. I’d walk away from the machine for quite a while and then check it again.

      --Joe

      • #2395927

        Joe,

        Thanks for the insight. I’ve uninstalled VBS and was surprised by the prompts I got when the machine rebooted, before actually getting into windows, to make sure I wanted to disable several features. This worried me as maybe some of these settings were in effect before I enabled VBS so I restored my EFI and Boot (C:) partitions from my recent images just in case.

        When I get a block of time I may retry VBS and give it more time to “settle in” as you say.



        May the Forces of good computing be with you!

        RG

        PowerShell & VBA Rule!
        Computer Specs

    • #2395950

      @RetiredGeek, you piqued my curiosity.  Admittedly this is an apples-to-oranges type comparison, as I have neither Secure Boot enabled nor my TPM 1.2 enabled, which may or may not make a difference, since there are differing levels of VBS based on such things.

      I noticed in your Specs that your VM Firmware is disabled, and I was curious.  Your motherboard is an Intel-based Dell board, and mine is an Intel motherboard, which also may invoke some differences.  Nevertheless, I went into UEFI and enabled Virtualization.  My 4 core i5-4670 is not capable of HyperThreading, another vector for differing results.

      I enabled VBS (without Secure Boot or TPM enabled) and rebooted.  It took a bit over 3 minutes for CPU usage to settle down to idle on that first reboot.  A second reboot allowed idle to be reached in less time.  With Malwarebytes, Firefox, Snipping Tool and Task Manager running, I get this at idle:

      CPU-Utilization

      It also drops to 2%, and idles mainly at 2% to 3%.  Antimalware Service Executable (Microsoft Defender Antivirus Service) and Antimalware Service Executable Content Process are the CPU’s heavy hitters on startup, but settle down nicely in a reasonable amount of time.  The desktop is visible almost immediately after logon and apps/programs launch readily.

      I’ll let it run for a day or three to see if there are any hiccups, but it doesn’t appear at the moment to cause a noticeable performance hit on my system.

      Create a fresh drive image before making system changes/Windows updates, in case you need to start over!
      "When you're troubleshooting, start with the simple and proceed to the complex."—M.O. Johns
      "Experience is what you get when you're looking for something else."—Sir Thomas Robert Deware

    • #2396172

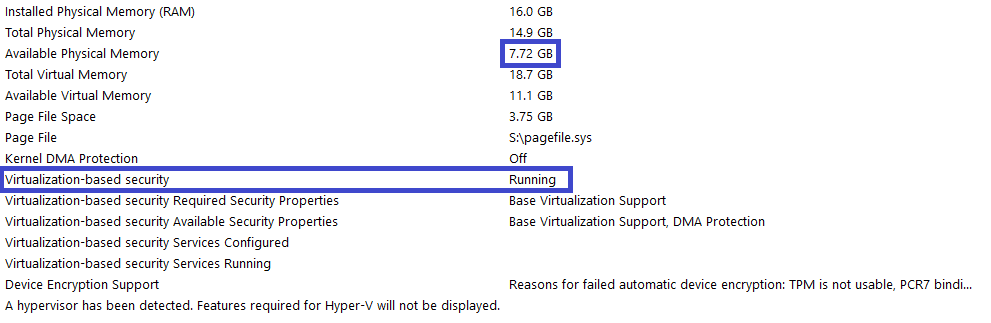

      @RetiredGeek, I’m still running VBS, still idling 2%~3% CPU.  The only noticeable effects have been the time it takes to logoff has increased, and it sucks up a good bit of RAM.  Logon is still snappy.

      .VBS

      Kernel DMA protection is off, since that requires Secure Boot, and I still have Secure Boot disabled.

      Create a fresh drive image before making system changes/Windows updates, in case you need to start over!
      "When you're troubleshooting, start with the simple and proceed to the complex."—M.O. Johns
      "Experience is what you get when you're looking for something else."—Sir Thomas Robert Deware

    • #2396332

      I ran VBS until a few minutes ago, and I haven’t noticed any performance hits in the three or so days I had it running.  A few minutes ago I disabled it, rebooted to make sure it was disabled (System Information), then booted into UEFI to disable Intel’s virtualization.

      I disabled it in the registry (which was how I enabled it in the beginning), and didn’t see any prompts/warnings at all on reboot.  Then again, I ran it at the lowest level without Secure Boot and TPM 1.2 disabled.

      I don’t see a need for it, and even though it doesn’t seem to have any adverse effects (on my system), I have no reason to use it.

      Create a fresh drive image before making system changes/Windows updates, in case you need to start over!
      "When you're troubleshooting, start with the simple and proceed to the complex."—M.O. Johns
      "Experience is what you get when you're looking for something else."—Sir Thomas Robert Deware

    • #2396617

      Hey Y’all,

      Well I’ve been down the “Rabbit Hole” for the last couple of days trying to figure out this whole VBS (Virtualization Based Security) thing and here’s what I’ve found out so far and I’ve just scratched the surface.

      Thanks to JoeP & bbarren I found out that you do have to wait a while for the system to “settle down” after enabling VBS.

      My main machine before installing VBS:
      BaselineMachineIdle
      Next I enabled my Virtualization Hardware and Hyper-V (Windows Optional Componets)
      Installed VBS via Powershell command:
      & ‘ComputerMentor2CMSharedNAS-DownloadsUseful-UtilitiesDG Readiness Tooldgreadiness_v3.6dgreadiness_v3.6DG_Readiness_Tool_v3.6.ps1’ -enable

      Output from the PS command:

          Directory: C:


      Mode                 LastWriteTime         Length Name
      ----                 -------------         ------ ----
      d-----        10/16/2021   3:41 PM                DGLogs
      ###########################################################################
      Readiness Tool Version 3.4 Release.
      Tool to check if your device is capable to run Device Guard and Credential Guard.
      ###########################################################################
      ###########################################################################
      OS and Hardware requirements for enabling Device Guard and Credential Guard
       1. OS SKUs: Available only on these OS Skus - Enterprise, Server, Education, Enterprise IoT, Pro, and Home
       2. Hardware: Recent hardware that supports virtualization extension with SLAT
      To learn more please visit: https://aka.ms/dgwhcr
      ###########################################################################

      Enabling Device Guard and Credential Guard
      Setting RegKeys to enable DG/CG
      Enabling Hyper-V and IOMMU
      Enabling Hyper-V and IOMMU successful
      Please reboot the machine, for settings to be applied.

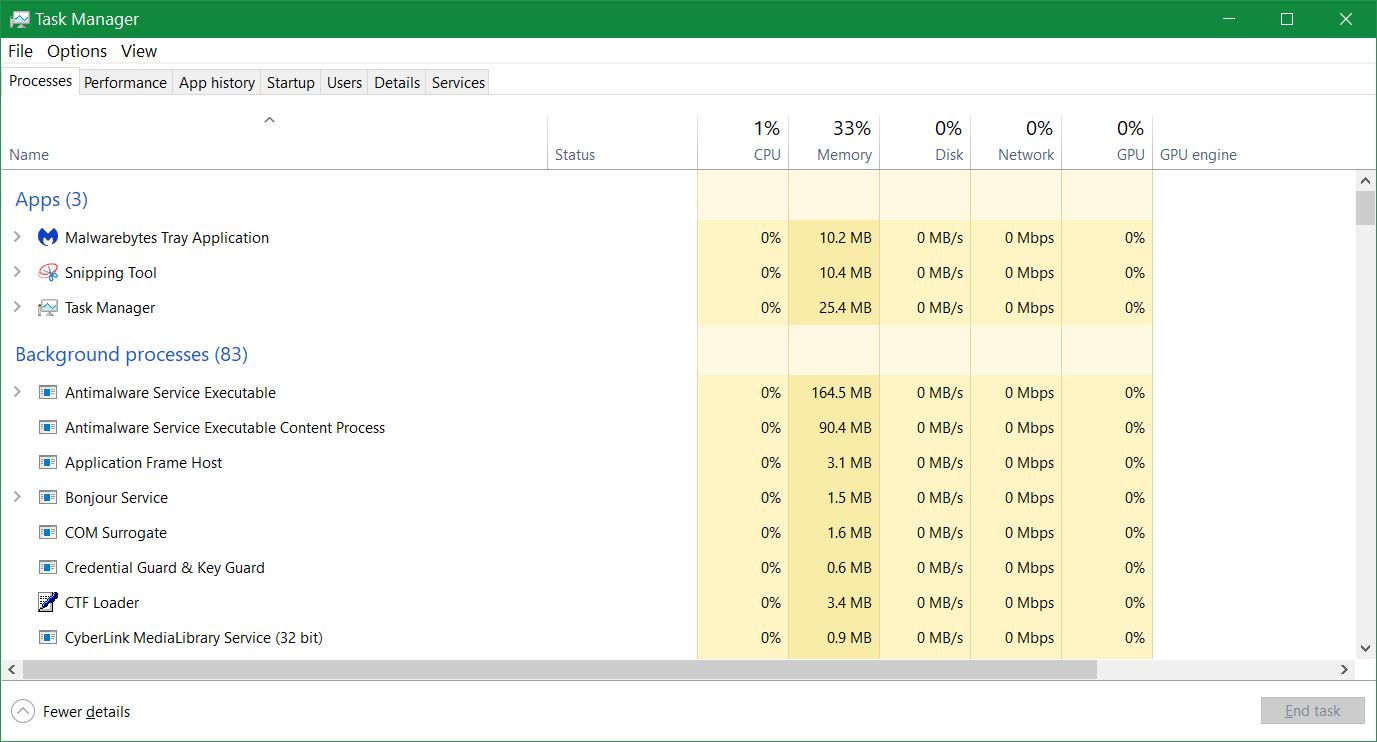

      My main machine with VBS Installed:
      POSTVBSMachineIdle
      Here are the relative boot times before and after VBS installation measured with my Restart-Timer.ps1 program to take the user element out of the timing.

      Before Installing VBS
      DELLXPS8920's System is Compacted: False
      2:21:07 PM
      2:21:52 PM
      Elapsed Reboot Time: 00:00:45.9748014

      After Installing VBS
      DELLXPS8920's System is Compacted: False
      7:19:24 PM
      7:20:16 PM
      Elapsed Reboot Time: 00:00:52.0512680


      About a 6 second penalty, no biggie!
      ————————————————-

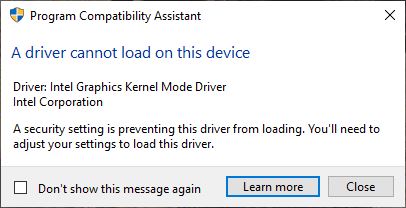

      Now I also did this on my vintage Dell XPS 13 Laptop and got this on reboot:
      Dell137000DriverWontLoad
      The computer stilled worked but it would not let me active display #2! So I restored from my image and all is well.
      Note: I did update the Intel Display driver from the Dell website, unfortunately with the same result so this machine won’t be running VBS!
      ————————————————-
      Back to my main machine.

      Next I did some research and wrote a little Powershell to report VBS Status:

      Key                                          Value
      ---                                          -----
      HyperVisorPresent                            True
      BaseVirtualizationSupport                    Enabled
      SecureBoot                                   Enabled
      CredentialGuard                              Enabled
      HypervisorEnforcedCodeIntegrity              Enabled
      CodeIntegrityPolicyEnforcementStatus         EnforcementMode
      UserModeCodeIntegrityPolicyEnforcementStatus EnforcementMode

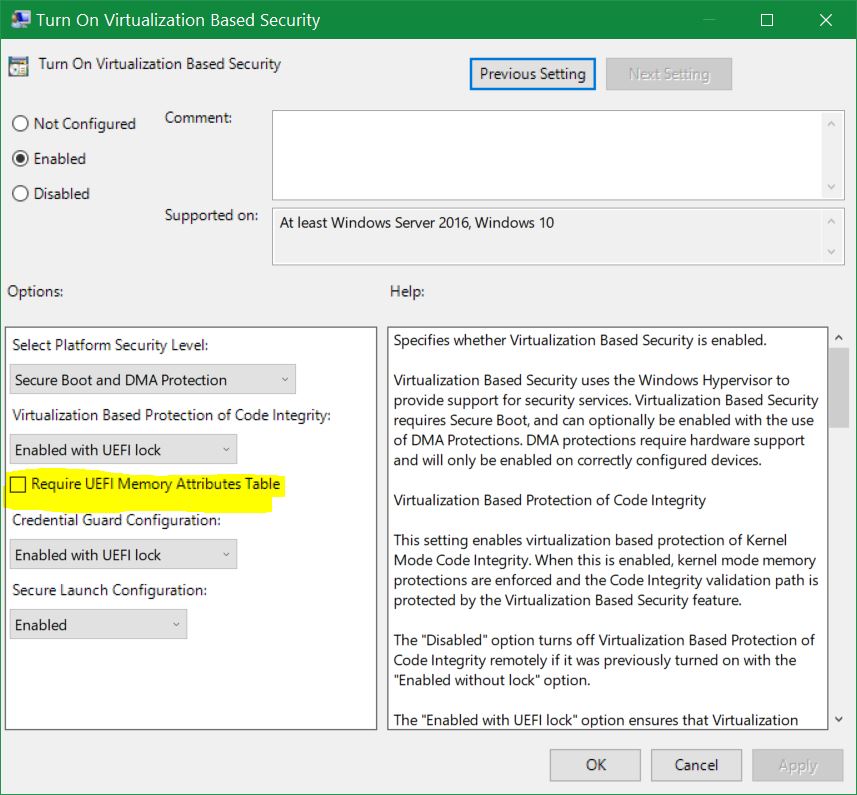

      Upon more research I found some Group Policy settings I could use to configure VBS:
      Administrative Templates
      System
      Device Guard
      Turn On Virtualization Based Security
      GroupPolicySettingsforVBS
      After Enabling this policy as shown above, I reran my Powershell program and much to my surprise the settings for the last two items changed from EnforcementMode to AuditMode. This means that rules are logged if failed but the code can still run, used for reference in creating rules for exceptions. I did a lot of googling but no answers ensued that would work on Win Pro, all for Enterprise. So I reverted to the chang setting, reboot, rise wash repeat method.
      Luckily, I hit it on the first try and found it was the check mark in the “Require UEFI Memory Attributes Table” setting. Unchecking and rebooting returned me to EnforcementMode.

      So I’ve still got a lot of work to do but here’s my current output from my Powershell program.

      Key                                          Value
      ---                                          -----
      HyperVisorPresent                            True
      BaseVirtualizationSupport                    Enabled
      SecureBoot                                   Enabled
      CredentialGuard                              Enabled
      HypervisorEnforcedCodeIntegrity              Enabled
      CodeIntegrityPolicyEnforcementStatus         EnforcementMode
      UserModeCodeIntegrityPolicyEnforcementStatus EnforcementMode
      VBS Status                                   VBS is ENABLED and RUNNING


      The above program draws information from:

      $CompInfo = Get-ComputerInfo

      $GCIArgs  = @{ClassName = "Win32_DeviceGuard"
                    Namespace = "rootMicrosoftWindowsDeviceGuard"
                   }
      $VBS = Get-CimInstance @GCIArgs


      HTH

      May the Forces of good computing be with you!

      RG

      PowerShell & VBA Rule!
      Computer Specs

      2 users thanked author for this post.
    • #2397105

      And the story continues!

      Today I noticed that I had no Sound! A friend sent me a video and I couldn’t get any sound. Then I noticed that the usual white x next to my speaker icon in the Notifications Area was surrounded in a red circle! So off to settings.
      VBS-NoSound
      What do you mean no Sound Devices?

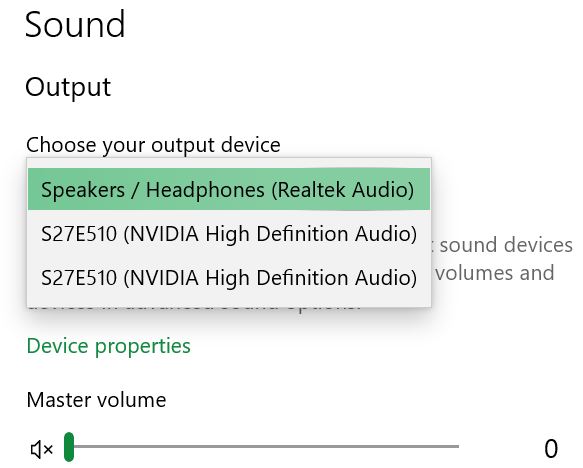

      Well let’s see what has changed…VBS of course. Although I hadn’t gotten any notices of the audio drivers not loading, like I did on my laptop, I figured that this was where the problem was so I downloaded the latest driver from Dell figuring it would be compatible with VBS of course no luck here. I even disabled VBS, which brought back my video after a reboot,
      VBS-Sound
      and then reinstalled the new audio driver and then reenabled VBS that nasty x in the red circle reappeared.

      I tried selectively turning off features of VBS all to no avail. So I’m now back to not having VBS running so I have sound. FYI: I also searched for a newer driver w/o success.

      VBS Enabled:

      CM's Get-VBSSettings.ps1 Ver: 1.1

      Key                                          Value
      ---                                          -----
      Computer                                     DellXPS8920
      Trusted Platform Module                      Present
      Firmware Type                                UEFI
      Secure Boot UEFI                             Enabled
      HyperVisorPresent                            True
      BaseVirtualizationSupport                    Enabled
      CredentialGuard                              Enabled
      HypervisorEnforcedCodeIntegrity              Enabled
      CodeIntegrityPolicyEnforcementStatus         EnforcementMode
      UserModeCodeIntegrityPolicyEnforcementStatus Off
      VBS Status                                   VBS is ENABLED and RUNNING


      VBS Disabled:

      CM's Get-VBSSettings.ps1 Ver: 1.1

      Key                                          Value
      ---                                          -----
      Computer                                     DellXPS8920
      Trusted Platform Module                      Present
      Firmware Type                                UEFI
      Secure Boot UEFI                             Enabled
      HyperVisorPresent                            False
      BaseVirtualizationSupport                    Enabled
      CredentialGuard                              Enabled
      HypervisorEnforcedCodeIntegrity              Enabled
      CodeIntegrityPolicyEnforcementStatus         N/A
      UserModeCodeIntegrityPolicyEnforcementStatus N/A
      VBS Status                                   VBS is ENABLED but NOT running


      Ideas anyone? I have to admit I’m at a loss.

      May the Forces of good computing be with you!

      RG

      PowerShell & VBA Rule!
      Computer Specs

      • #2397111

        Ideas anyone? I have to admit I’m at a loss.

        Reinstall Win10, and wait until Win11 is a finished product? ;_0

        1 user thanked author for this post.
        • #2397115

          I think this is Win10.

          Windows 10 Pro version 21H2 build 19044.1320 + Microsoft 365 (group ASAP)

          • #2397123

            Granted, but it shill applies to the situation at hand. So many are attempting to force the issue while having unqualified specs for Win11.
            Reminds me of those that kept trying to install Win7 on machines with newer CPUs that MS had blocked. What did that accomplish? Are they still running Win7 on newer CPUs?

            I still say “Reinstall Win10 and wait!”

            • #2397204

              No need to reinstall W10 as I just restored the image from before I started tinkering.

              I had no intention to even try to install W11 on any of my 3 machines as none of them meet the requirement.

              I  was merely trying to see if I could get VBS to work on my W10 main box for the added security. That said with my current security setup (Defender, Malwarebytes Premium, Router Firewall, all kinks of addon’s to Chrome, regular Images using Macrium Reflect, and of course using the device between my ears I’ve never had any kind of security event and that goes a long way back way before a lot of the mentioned products existed.

              After W11 is through a couple of update cycles I may try it on my wife’s laptop as it meets all the requirements, but that will have to wait until she’s gone for a day or two so I can tinker!

              May the Forces of good computing be with you!

              RG

              PowerShell & VBA Rule!
              Computer Specs
