Metered Connection Turned Off

Topic

New Reply

I noticed this week metered connection is grayed off and I can’t change it. Anybody else seeing this?

One PC is 1803 Pro 64-bit and the other is 1803 Home 32-bit. The 1803 Home 32-bit updated the Oct 2019 Cumulative Patch KB4520008 which I am OK with.

I would like to turn the metered connection back on. If someone has a registry edit, I am OK with doing it that way. My objective is to use the metered connection to control the Windows Update patches.

The 1803 Pro 64-bit tried to upgrade to 1903 Features but I used WUShowHide to stop it.

Reply | Quote

Replies

Firstly For the sake of clarity, have you tried verifying the metered connection setting with an account that has Administrator privileges?

Last resort: There is an article for altering the registry but it is three years old and you should have a working system image ready for restoration in case failure if the instructions are still applicable to version 1803.

1 user thanked author for this post.

KP

Reply | Quote

Last resort: There is an article for altering the registry but it is three years old and you should have a working system image ready for restoration in case failure if the instructions are still applicable to version 1803.

Thanks, this is what I was looking for. I will create a System Restore point and backup the Registry before I start.

Reply | Quote

Please see @Rick-Corbett ‘s solution. It’s much easier.

1 user thanked author for this post.

KP

Reply | Quote

https://support.microsoft.com/en-us/help/4091367/windows-10-cannot-change-metered-connection-setting        Try following this, I think this at least will clarify your doubts.

Just someone who don't want Windows to mess with its computer.

Reply | Quote

Zaphyrus wrote:

https://support.microsoft.com/en-us/help/4091367/windows-10-cannot-change-metered-connection-setting        Try following this, I think this at least will clarify your doubts.

That link has a couple of stray characters at the end. But it’s the same as “verifying” in the previous post:

Why can’t I change the metered connection setting?

Windows 11 Pro version 22H2 build 22621.2359 + Microsoft 365 + Edge

Reply | Quote

[Rick Corbett]

KP wrote:

I noticed this week metered connection is grayed off and I can’t change it. … I would like to turn the metered connection back on.

The fact that it’s greyed out means that not only is the connection metered but a data limit has been set. Remove the data limit and the meter connection will become ungrayed.

AFAIK there’s no method to do this via a registry edit. However, it’s so easy to fix that a registry edit is not needed. Here’s how to (using my Wi-Fi connection as an example):

1. Click on the Change data limit settings link below the grayed-out connection:

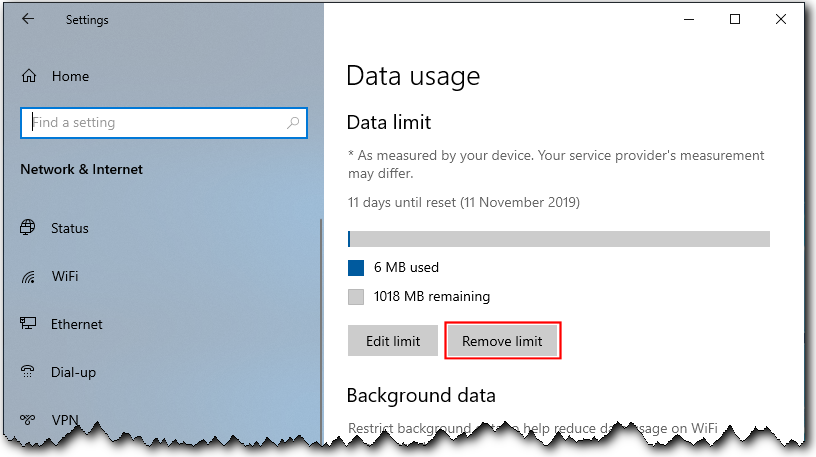

2. In the Data limit section, click on the Remove limit button then on the Remove button in the dialog which appears:

Now return to the properties of the metered connection and you should find that the toggle switch is no longer grayed.

Hope this helps…

• This reply was modified 3 years, 10 months ago by Rick Corbett.
• This reply was modified 3 years, 10 months ago by Rick Corbett.
• This reply was modified 3 years, 10 months ago by Rick Corbett.

Reply | Quote

[KP]

Thanks I will have a look.

Today 1803 Pro Admin is showing Metered Connection on, when I was applying Office Click-to-Run.

Since the other day, I have applied KB4521861 (Oct Service Stack) and KB4520008 (Oct Monthly Cumulative Update, MCU). I thought maybe this changed it. [1803 Pro]

I still need to check if KB4516058 (Sept MCU) changed 1803 Home.

• This reply was modified 3 years, 10 months ago by KP.
• This reply was modified 3 years, 10 months ago by KP.

Reply | Quote

HOLY!

We were searching all around and wondering why the DusmSvc Service always kicked back the Metering for LAN adapters, when restarted. It was the LIMIT.

Next question: which application did set a limit?

But just a late THANK YOU to your comment, so you know it’s valuable if you provide knowledge to the crowd. 😀

Reply | Quote

anonymous wrote:

Last resort: There is an article for altering the registry

Note that this registry edit method is solely for creating a metered connection from the days when only Wi-Fi (or Cellular) connections could be set as metered… but users wanted to meter their ethernet connections.

It has nothing to do with the Data limit setting… which is what actually grays the toggle switch.

Hope this helps…

1 user thanked author for this post.

KP

Reply | Quote

Thanks, I will keep it in mind.

Doing will give me a better understanding of the difference. I will try the Data Limit setting before the Registry edit.

Reply | Quote

I used Sysinternals/Technet’s Process Monitor to monitor the changes to the registry when I amended the data limit settings. I still couldn’t find a way of toggling the switch to un-gray it using just the registry.

Hope this helps…

Reply | Quote

Update: I double checked and when Metered Connection is grayed out, it is in non-admin mode. When in admin mode, metered connection is on.

It would seem on the surface, I am wrong; however 1803 Home updated KB4516058 (Sept Updates) with Metered Connection on, after failing KB4520008 (Oct Updates). This I can see in the Update History. Metered Connection is on, so Sept Updates should not have occurred.

Also 1903 Feature Updates also failed on 1803 Home.

The only way I will be able to prove Metered Connection was grayed out in admin mode, is with a picture.

Not sure how to set this discussion as resolve, until I have proof this is happening. Personally I think this occurred a few month ago too. Next time this happens, I will probably be on 1809.

Thanks Everybody

Reply | Quote

An Update:

I decided against trying the Registry Edit because based on some opinions expressed here. What I am going to try instead is Windows Update MiniTool from Susan Bradley’s article, https://www.askwoody.com/newsletter/peering-into-the-windows-tea-leaves/#windows-patching-0
