Can’t remove/delete a “drive within a drive”.

Topic

New Reply

When I read, in Susan Bradley’s Patch Watch of 22nd November, “… backup applications; many such as Veeam are offered free”, I downloaded it.

It was downloaded to my external hard drive (F). However, it created VEEAMRE (E) on the F drive, and installed itself in there.

This PC (it’s Windows 10) now shows four drives: Local Disk (C), DVD RW Drive (D), VEEAMRE (E), and Local Disk (F).

I then discovered that Veeam’s User Guide had 176 pages. No thank you, I’m not going to struggle my way through that.

I tried to uninstall everything in E, but something, I don’t know what, was left over. It has 531 MB free of 547 MB, and shows this as a short blue section in the box alongside its icon. I have formatted it but it still hangs on to … whatever it is.
I formatted F too, but E remains on it.

F has 465 GB free of 465GB.

How can I completely get rid of E?

With reference to Veeam’s user guide’s size, I looked at others for comparison. EasUS Todo Backup’s has 76 pages, Macrium Reflect’s has an astonishing 353. I couldn’t find one for Acronis.

Reply | Quote

Replies

You might want to try deleting the drive from a bootable disk, like from a partitioning application.

Reply | Quote

Thank you CLiNT.

I don’t understand how to do that.

Reply | Quote

Syncopator,

You might check to see if it is a virtual drive via the DOS Subst command.

Open a command prompt and just enter: Subst [Enter]

If you have any virtual drives they will be displayed. You can then use Subst to delete the virtual drive.

Here’s some documentation on Subst.

HTH :cheers:

May the Forces of good computing be with you!

RG

PowerShell & VBA Rule!
Computer Specs

Reply | Quote

RetiredGeek.

I did some Googling to find out a little about partitioning. I don’t quite know how I got there, but I succeeded in removing the E drive … but unfortunately the F drive went with it. It no longer appears in This PC.

Tried the Subst command out of curiosity. Nothing happened.

Edit: I looked in Device Manager and found that what was the F drive appears, under Universal Serial Bus controllers, as USB Mass Storage Device.
Its properties tells me that “This device is working properly”.

Reply | Quote

Fire up Disk Manager and see if the drive is recognised. If so you will be able to make it visible to Windows, but probably not without data loss.
Post a screenshot of the Disk Manager view and we will advise.

cheers, Paul

p.s. I like your reason for not using a program – manual too big.

Reply | Quote

Thank you Paul T,

I had set the “inform me of replies” facility, but it failed to work for your post. Sorry for the delay.

46149-Disk-Management

Reply | Quote

Thank you Paul T,

I had set the “inform me of replies” facility, but it failed to work for your post. Sorry for the delay.

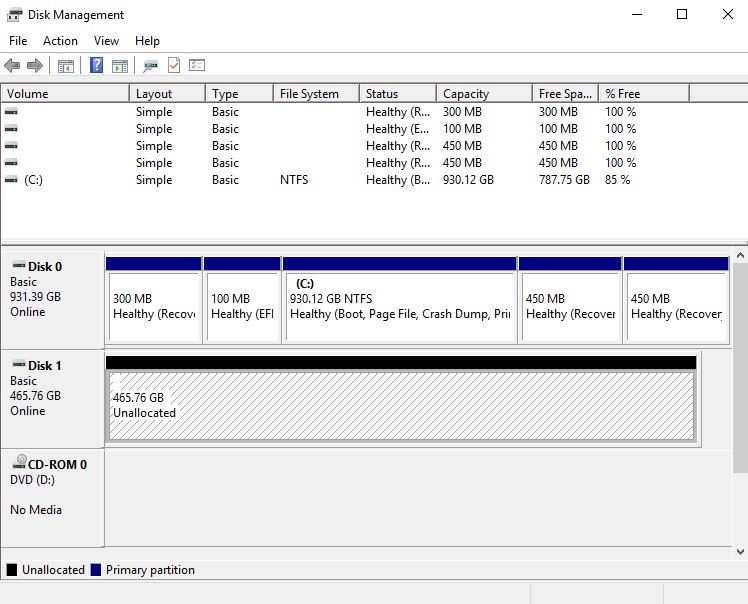

46150-DiskMgmt

Reply | Quote

You have an apparently un-formatted drive. You have two options.
1. Reformat and start again.
2. Run a recover utility to attempt to resurect the drive and data. This may or may not work, but if you want to try to get your data back…

cheers, Paul

p.s. Why don’t you change the CD drive letter to E or F and then you can have the second hard drive as D.

cheers, Paul

Reply | Quote

Why don’t you change the CD drive letter to E or F and then you can have the second hard drive as D.

I always assign V: to my DVD drive, to keep it well out of the way!

BATcher

Plethora means a lot to me.

Reply | Quote

My first thought was to reformat it, but that option is not available.

Right clicking on the left, where it says Disk 1, offers me Convert to Dynamic Disk, Convert to GPT Disk, Properties, and Help.

Right clicking on the main window to the right offers me New Simple Volume, Properties, and Help.

I had a look for recovery software on the net and opted to try Piriform’s Recuva.

It asks for the File location. Of the options presented, “In a specific location” seems to be the obvious one, but it’s not shown when I browse for it.

I can’t think what to do next.

Reply | Quote

You need to perform a disk recovery in Recuva.

To format it you need to first create a new simple volume.

cheers, Paul

Reply | Quote

how did you uninstall veeam?

Just because you don't know where you are going doesn't mean any road will get you there.

Reply | Quote

I think I used IObit’s Uninstaller.

Edit … a bit later.

The drive has now been formatted and appears to be fine.

Thank you to all who have helped.
