Missing network icon

Topic

New Reply

Missing network icon
ThinkStation P529 – Win 10 1903 – LAN – 192.168.0.21 – I can ping ok alle
ThinkStation D30 – Win 10 1909 – LAN – 192.168.0.11 – I can ping OK alle
Thinkstation D20 – Win7 – LAN – 192.168.24 – I can ping all ok
ThinkPad W530 – Win 10 1909 – WIFI – 192.168.0.12 – I can ping all OK

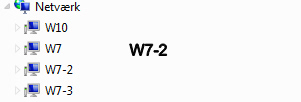

only W7-2 can connect to alle PC !!!
W7-3 have had connection to all but after reboot W10 is missing
same with W7 and W10
Karen’s Replicator works even with the missing W10 icon
please advice how to fix the problem



Moderator Note: Edit to remove HTML. Contents may not appear as intended.

Reply | Quote

Replies

ThinkStation P529 = W10

ThinkStation D30 = W7

ThinkStation D20 = W7-2

ThinkPad W530 = W7-3

W10, W7 and W7-3 are missing Networtk icon

How to get them back !!!







Reply | Quote

[doriel]

Hello.

Are IP static/DHCP? Are all PCs in te same workgroup?

Assuming you are able to access and ping these PCs I think I saw this problem before.

1) Open Control Panel – All Control Panel Items – Administrative Tools – Services
2) Set both Function Discovery Services to Automatic and start them, This will help discover other devices or PC’s and especially if PC ICONS are missing in the Network Folder.

Also make sure these 2 below will already be running as they should be, even though they are set to manual, no need to bother with them if they are running. IF NOT, change them to Automatic and Start them.

SSDP Discovery
UPnP Device Host

3) Open Control Panel – All Control Panel Items – Programs and Features – Turn Windows Features On or Off

Find SMB 1.0 CIFS File Sharing Support (Expand)

ONLY select “Tick Box”, SMB 1.0 CIFS client, OK

4) Restart PC



Let us know if this helped, but I think some serice is not running properly..

Dell Latitude 3420, Intel Core i7 @ 2.8 GHz, 16GB RAM, W10 22H2 Enterprise

HAL3000, AMD Athlon 200GE @ 3,4 GHz, 8GB RAM, Fedora 29

PRUSA i3 MK3S+

• This reply was modified 4 years, 10 months ago by doriel.
• This reply was modified 4 years, 10 months ago by doriel. Reason: text formatting

1 user thanked author for this post.

sorenbh

Reply | Quote

Try this on all affected computers. I think on machine called W10, one of these services wont be started.

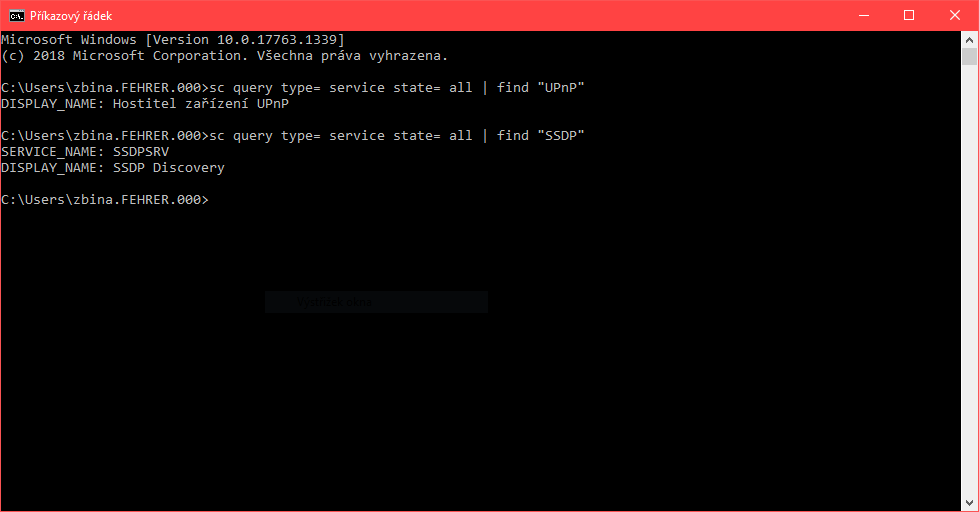

Since you have different W10 language, you can check service names by cmd commands:
sc query type= service state= all | find “SSDP”
and
sc query type= service state= all | find “UPnP”

In czech translation for example, it looks like this:

DISPLAY_NAME is xactly how you will find these services at:
Control Panel – All Control Panel Items – Administrative Tools – Services

Dell Latitude 3420, Intel Core i7 @ 2.8 GHz, 16GB RAM, W10 22H2 Enterprise

HAL3000, AMD Athlon 200GE @ 3,4 GHz, 8GB RAM, Fedora 29

PRUSA i3 MK3S+

Reply | Quote

thanks for  your reply

Suddenly all the network icons was back and I could connect to/from  all my PC

I am using  a Dansih version of Window so to check the various  settings

are cumbersome but I found them









Reply | Quote
