Portrait / Landscape Macro Problem

Topic

New Reply

I have a macro as below that with one click converts a portrait page to landscape and adjusts the header and footer. The header and footer both have three column tables that hold images and fields. It has worked very nicely for over ten years! The macro is stored in a global template in WordStartup and is run from a number of templates.

Now I have created a new template, again with three column tables and the macro runs except it whilst the ruler shows the landscape page width when the cursor is in the body of the document, the page width when in the header has not adjusted.

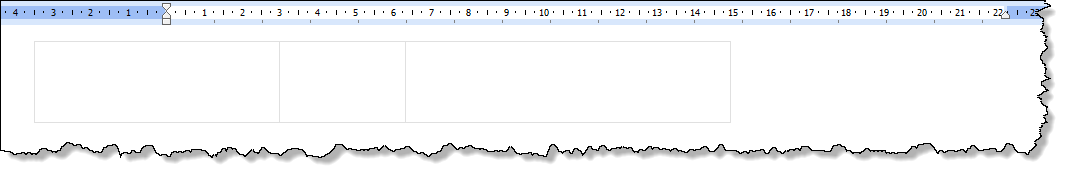

Screenshot 1 shows the new template with the cursor in the body.

30820-landscape001

Screenshot 2 shows the old template with the cursor in the body. Ruler shows same width.

30821-landscape002

Screenshot 3 shows the new template with the cursor in the body.

30822-landscape003

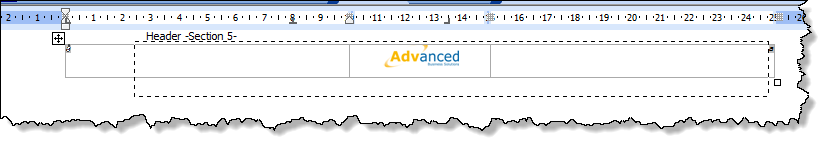

Screenshot 4 shows the old template with the cursor in the header. Ruler shows a different width.

30823-landscape004

I have attached the macro as a text file. The last macro in the file runs the others in turn.

Can anyone see what I am missing please? I am not a VB expert. Most of my macros are recordings or hacks of recordings.

Reply | Quote

Replies

… and the answer is “make sure the tables don’t have a defined width, just set the cells to have a width and let the macro adjust that”.

Doh!

Reply | Quote

My head hurts looking at your code so I’m not going to rework it.

I suspect the problem is that the header is linked to the previous section (which has a different page layout). If you break that link then you should see the expected margins. Your code toggles this setting – better to explicitly set it to False.

The resizing of the table can sometimes be done simply by setting the width to 100%. In your case, you might want to fix a couple of column’s widths and allow the other two to resize according to the available space.

The following code assumes you have passed in a value for the Section Number iSect

Code:

  Dim aTable As Table, lngWidth as Long
  With ActiveDocument.Sections(iSect)
    lngWidth = .Range.PageSetup.PageWidth – .Range.PageSetup.LeftMargin – .Range.PageSetup.RightMargin
    For Each aTable In .Headers(wdHeaderFooterPrimary).Range.Tables
      If aTable.Columns.Count = 3 Then
        aTable.Columns(3).Width = CentimetersToPoints(6)
        aTable.Columns(2).Width = CentimetersToPoints(4)
        aTable.Columns(1).Width = lngWidth – aTable.Columns(2).Width – aTable.Columns(3).Width
      End If
    Next aTable
  End With

Reply | Quote

Andrew

I don’t doubt there are more lines of code than needed but the macros do work nicely. The users love them.

Yes I should have gone for percentages but simply applying column widths but no table width does work. When the macro runs it specifies the sizes. With percentages they would have just resized I guess. I will fix that next time I work on the macros.

Thank you.

Reply | Quote
