Directing files to be saved on a second hard drive

Topic

New Reply

I just added a second drive (labeled D) to my Windows 10 PC that I want to use for storage.

Most instructions say to Open File Explorer. Right-click on a default folder that you want to move. Click on the Location tab. Click on the Move button and select a new folder for this content.

Am I actually moving a folder? IOW is the original folder on the C: drive going to be deleted? Or is this just pointing to new additional folders on the D: drive where the files will be saved?

When searching I found this regarding freeing up space.
https://www.askwoody.com/newsletter/brace-yourself-these-features-are-leaving-windows-10/

What’s the difference between these two steps? It appears they do the same thing but apparently not.

If You Have a Second Disk Drive, Change the Location of Default Folders

If you have a second disk drive, you can move certain default folders that may be taking up space. You can move folders for such content as your contacts, desktop, documents, and pictures. Open File Explorer. Right-click on a default folder that you want to move. Click on the Location tab. Click on the Move button and select a new folder for this content.

Next, change where new content is saved.

If your PC has more than one internal disk drive or an attached external drive, you can change the location of certain data from your primary drive to a different drive. To do this, return to the Storage screen in settings. Under More storage settings, click on the link to Change where new content is saved. You can now change the location for new apps, documents, music, photos and videos, new movies and TV shows, and offline maps.

Thanks -any suggestions will be appreciated.

Reply | Quote

Replies

Am I actually moving a folder? IOW is the original folder on the C: drive going to be deleted? Or is this just pointing to new additional folders on the D: drive where the files will be saved?

In File Explorer, the basic “right click hold and drag” will always pop up a reconfirm window with “Move here”, “Copy here”, “Create shortcut here”.  Selecting “Move here” will move (not copy” the folder and/or files you have selected.  If you want to retain the folder on the source disk, to not select “Move”.

I keep my boot drive lean so my image backups don’t take long to make.  I keep many folders and files on second disks and retain some on the source disk.   The stuff I don’t retain on the source disk is everything in my OneDrive cloud and Google Drive cloud.  Combined, it’s over 130 GB.   These files only exist on a second disk an in the cloud.

I do keep archives of EVERYTHING on multiple external backup disks and sync changes to them a couple of time a week.

I don’t use storage sense, but it does seem much improved from the first version.

Desktop mobo Asus TUF X299 Mark 1, CPU: Intel Core i7-7820X Skylake-X 8-Core 3.6 GHz, RAM: 32GB, GPU: Nvidia GTX 1050 Ti 4GB. Display: Four 27" 1080p screens 2 over 2 quad.

Reply | Quote

TechTango wrote:

In File Explorer, the basic “right click hold and drag” will always pop up a reconfirm window with “Move here”, “Copy here”, “Create shortcut here”.  Selecting “Move here” will move (not copy” the folder and/or files you have selected.  If you want to retain the folder on the source disk, to not select “Move”.

The question was about moving a folder from its Location tab.

Reply | Quote

BrerBear wrote:

If you have a second disk drive, you can move certain default folders that may be taking up space.

NEVER move default folders from C: drive to D: drive .
COPY the contains in these folders to new created folders on D: drive.
After verifying the copy , delete the data in the original C: folders.
Change appropriate settings to save new files to the new D: folders (I always save manually, never let Windows to decide for me).

Reply | Quote

Alex5723 wrote:

NEVER move default folders from C: drive to D: drive .

Why not?

How to move user folders to different location on Windows 10

1 user thanked author for this post.

BrerBear

Reply | Quote

That’s the procedure I usually see. However sometimes I see the other method mentioned as in my first posting where you go to the Storage screen in settings > More storage settings > Change where new content is saved.

What’s the difference between the two? And why use both?

Reply | Quote

That’s the procedure I usually see. However sometimes I see the other method mentioned as in my first posting where you go to the Storage screen in settings > More storage settings > Change where new content is saved.

What’s the difference between the two? And why use both?

The difference is using the ‘Location > Move’ option lets you manually create a folder (Documents as an example) in the ‘D’ Drive (or other internal Drive of your choice) and to then move ‘all’ the folders/files from the original Documents location to the new location.
Documents in the future, when saved, will show the new default save location for you to use or not.
In my experience, the original, now empty, Documents folder remains in the ‘User’ files folder. I assume this is for older programs that may be hard coded to write/save to that location and thus in doing so, avoiding complications trying to find a folder that wouldn’t be there.

When you opt to ‘Change where new content is saved’, say in the D Drive, a new folder, with your user name, is created and a sub folder called Documents is within that folder.
All new documents will have a default save location to this changed location/folder and the original Documents folder content remains.
You will now have 2 locations for ‘Document’ content – the original Documents folder and the newly created location which saves ‘new’ content to that location.
You will have 2 locations that contain old and one for new content!
The ‘Change where new content is saved’ option perhaps should be used on a new, clean install and all Documents created/saved will have the new/changed location from day one and not have confusingly 2 locations of similar types of files.

I always ‘move’ all my documents (folders/files) to an internal ‘*’ Drive using the ‘Location’ tab option and always do on any new machine along with Pictures, Videos, Music.
When I, for experimental purposes, use the ‘Change where new content is saved’ option for say Documents, any changes are not respected and do not work. I assume this is because the ‘Move’ via the ‘Location’ tab has been used previously used and changed Registry settings are preventing the new location from being offered.

Again from my experience, program settings giving a save location choice, over-rides options given by the ‘Change where new content is saved’.

1 user thanked author for this post.

BrerBear

Reply | Quote

Freeing up space = buying a bigger SSD.
Keep all your data on it and backup that data regularly.

Note: not all user data is stored where you think it is. A number of programs store data in %APPDATA%, e.g. mail programs and browsers.

cheers, Paul

Reply | Quote

Is there anything wrong with Documents, Downloads etc. being moved to a secondary, non-system disk?

Reply | Quote

Nothing, except your SSD is the fastest disk and therefore the best place for all your data. Unless you can afford 2 SSDs and dedicate one to your user data, which is difficult thanks to programs writing to appdata.

cheers, Paul

Reply | Quote

b wrote:

Alex5723 wrote:

NEVER move default folders from C: drive to D: drive .

Why not?

How to move user folders to different location on Windows 10

Wasn’t 1809 upgrade fiasco enough ?

Reply | Quote

Alex5723 wrote:

Wasn’t 1809 upgrade fiasco enough ?

No. Because that only affected 0.01% of 1809 updates, where users had moved known folders but chosen not to include all contained files; which was contrary to Microsoft’s recommendations. But they still got Microsoft’s assistance to recover any deleted files.

Reply | Quote

Because of updates and other cloud type data files, I don’t move the default folders.  I move the contents of the folder to another drive and place in the default folder a symlink to the actual files on the other drive.   All updates and cloud functions will “see” the default folder on the old drive as the location of the files.  Data stored on second drive but functions as being on the default drive.

HTH, Dana:))

HTH, Dana:))

1 user thanked author for this post.

Alex5723

Reply | Quote

b wrote:

But they still got Microsoft’s assistance to recover any deleted files.

Not all dat has been recovered. Many (who didn’t backup) lost Gigs valuable family history…data.

Reply | Quote

The only time I use that location / move thing is when, on a new build of windows, I need to point My Documents or Documents or whatever it wants to call it, to my “E” partition, which is where I keep my real My Documents with all its stuff. I use “Move”. There is nothing else on C that I want on an alternate partition. I only install stuff to C, I do not “keep” stuff on C as that quickly becomes a huge hideous mess.

My typical system is on an SSD (250GB at the moment) with a number of partitions – the 3 that win needs to boot it, plus, C(the operating system), E(all my apps, drivers, My Documents, and other stuff). I used to have another partition “F” for my phone stuff when I was heavy into flashing my smart phones but that has become simply another small folder on “E” partition as I don’t do that any more. There are also a couple other partitions for Linux Mint since that’s what I seem to be using 99% of the time at the moment.

When I do a backup, I use Macrium to backup that entire SSD to an image in a folder on an external SSD(connected via USB3 and which can be removed offsite when not needed).(I actually have a few of those). Backups take about 9 minutes for my stuff and produces about a 70GB folder.Macrium support in windows allows those folders to be opened, explored, and individual files or items to be extracted back to, say, “E”.  This external drive also has a label “G”.

This way, no matter how badly screwed up the system SSD is, I can always, easily get it back, just by plugging in the Macrium Rescue bootable USB stick, booting to it and doing the restore. 9 minutes later, it’s as if nothing happened.



This way, too, if I put a new OS on there, all the stuff I really need is carried forward on “E”. I just have to re-install apps on “C”.

1 user thanked author for this post.

BrerBear

Reply | Quote

What’s the consensus of opinion on moving email to a second drive?

A family member saves a lot of email with photos for reference so we use POP mail & have over 2GB of Thunderbird email. I did some searching & some people move the Profiles to a second drive & some people say that slows down things & is not worth it. But I’m thinking in terms of backing up data & making an image of the SSD. IOW why make an image that includes email?

Any comments on this would be appreciated. Thanks again.

Reply | Quote

As per my above post, I use TBird. It uses a folder named “tbird”. I have that on my “E” drive. So when I first install TBird, I point it to that folder in Account Settings/Local Folders. Again, that means that I have all my past mail if I change opsys. It also means that I can access it both on windows, and Linux Mint. So I have the same mail whether I am using windows or linux. Easy.  Whether that partition is on the same drive or different drive from the opsys makes no difference as long as you have set it to point to that folder. I leave it on the same SSD as, for me, it is simply easier to back it up when I back up everything else.

If you have all your mail somewhere, like on C, I have no idea how to move it to another partition, but I am sure with a bit of googling and asking on a tbird forum you could find out.

EDIT – it may be as simple as looking in account settings and seeing where it is pointing now, moving that folder to another partition, and then changing the pointer in tbird to point to it in its new location.

Reply | Quote

BrerBear wrote:

What’s the consensus of opinion on moving email to a second drive?

That much mail is asking for a drive of its own.
This will not slow things down as long as the drive is internal.
Backup / image will be easier.
You can have an SSD for Windows / programs and an HDD for the mail store. Your machine will then be faster, including email.

The problem is moving the TB profile folder. It is a manual process and you need to be careful, but it works well. (See “moving a profile” on this page.)

a wrote:

I point it to that folder in Account Settings/Local Folders.

That doesn’t move your mail store. See the page linked above for details.

cheers, Paul

Reply | Quote

“krism wrote:

I point it to that folder in Account Settings/Local Folders.

That doesn’t move your mail store. See the page linked above for details.

cheers, Paul”

Taken out of context. I had already moved the folder.

Reply | Quote

a wrote:

“krism wrote:

I point it to that folder in Account Settings/Local Folders.

That doesn’t move your mail store. See the page linked above for details.

cheers, Paul”

Taken out of context. I had already moved the folder.

Just to clarify, are you pointing to Account Settings/Local Folders/Local directory

or Account Settings/Server Settings/Local directory?



Reply | Quote

Please ask as many questions as you need! this was a folder that I created 5-10 years ago by moving the folder at the default location in (for windows) c/user/I forget where it puts it, to a folder named Tbird on my E partition.

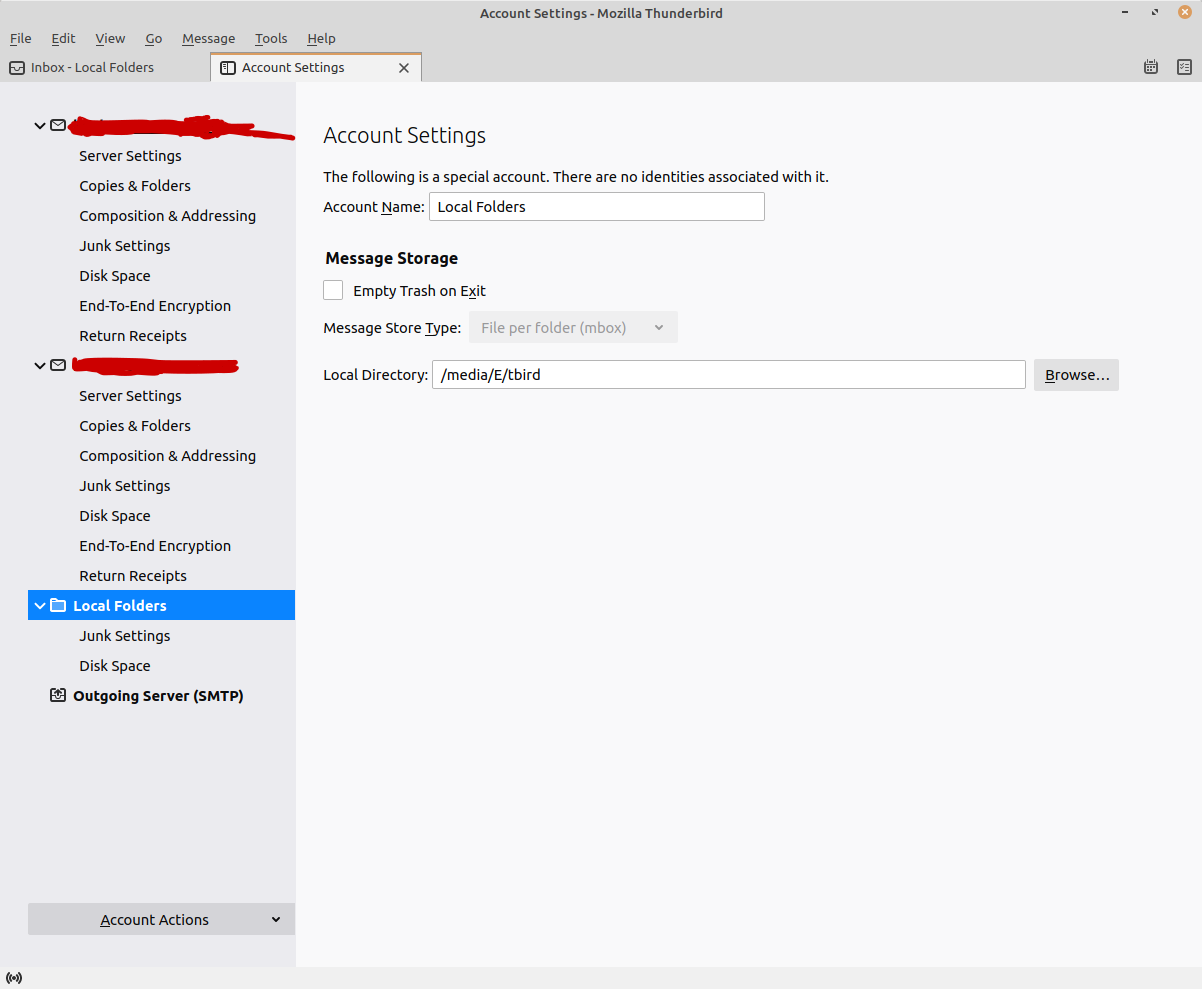

In thunderbird, Edit, Account Settings:



My guess is that the default is something like

your user name/.thunderbird/the active profile(the big one)/Mail , but check your own tbird for where it is. Copy that to wherever you want to keep it and then change the location to point to the new location. If all went well , it should look the same.  Then at some point you can delete the stuff in .thunderbird/profile/mail

Reply | Quote

I’ve read how to move the Profiles folder to a second drive & how to change the Directory location in Account Settings/Server Settings. Most comments say there will be less problems if you move the whole profile. But I’d like to know what’s the problem with just changing the Directory location since that is an option in Account Settings/Server Settings.



Reply | Quote

sounds like you will be creating a new blank profile. Copying the contents of the original profile folder to the new one may be desirable for you.

Just because you don't know where you are going doesn't mean any road will get you there.

Reply | Quote

Sorry, I don’t know. I have never moved the pointer in the server settings so I can’t advise you there. Who knows, it might be better. Don’t know. I have only ever moved the message storage and left .thunderbird where it was. Sorry.

I suppose it would be simple to simply make an image backup with something like Macrium, and then change it as you wish and see if it works. If it doesn’t, just restore the image and nothing lost.

1 user thanked author for this post.

BrerBear

Reply | Quote

BrerBear wrote:

what’s the problem with just changing the Directory location

You now have two locations to backup / restore. Move the whole profile and backup once.

cheers, Paul

Reply | Quote

Paul T wrote:

BrerBear wrote:

what’s the problem with just changing the Directory location

You now have two locations to backup / restore. Move the whole profile and backup once.

cheers, Paul

I’m still kicking it around. Email is data so why not store it with the other data. OTOH it doesn’t seem like something a lot of people do. Maybe because it’s a relatively small amount of data or maybe because it’s in AppData vs. a Library or other folder.

Reply | Quote

Email is one of the largest data uses for most people, after pictures and maybe music.

The issue is that email apps “hide” the data location so backing it up is not obvious.

cheers, Paul

Reply | Quote

BrerBear wrote:

OTOH it doesn’t seem like something a lot of people do.

I do. I use the free MailStore Home to backup my mail.

Reply | Quote

I use FreeFileSync to back up the Mail section of my profile.
Zig

Reply | Quote

Moonshine wrote:

That’s the procedure I usually see. However sometimes I see the other method mentioned as in my first posting where you go to the Storage screen in settings > More storage settings > Change where new content is saved.

What’s the difference between the two? And why use both?

The difference is using the ‘Location > Move’ option lets you manually create a folder (Documents as an example) in the ‘D’ Drive (or other internal Drive of your choice) and to then move ‘all’ the folders/files from the original Documents location to the new location.
Documents in the future, when saved, will show the new default save location for you to use or not.
In my experience, the original, now empty, Documents folder remains in the ‘User’ files folder. I assume this is for older programs that may be hard coded to write/save to that location and thus in doing so, avoiding complications trying to find a folder that wouldn’t be there.

When you opt to ‘Change where new content is saved’, say in the D Drive, a new folder, with your user name, is created and a sub folder called Documents is within that folder.
All new documents will have a default save location to this changed location/folder and the original Documents folder content remains.
You will now have 2 locations for ‘Document’ content – the original Documents folder and the newly created location which saves ‘new’ content to that location.
You will have 2 locations that contain old and one for new content!
The ‘Change where new content is saved’ option perhaps should be used on a new, clean install and all Documents created/saved will have the new/changed location from day one and not have confusingly 2 locations of similar types of files.

I always ‘move’ all my documents (folders/files) to an internal ‘*’ Drive using the ‘Location’ tab option and always do on any new machine along with Pictures, Videos, Music.
When I, for experimental purposes, use the ‘Change where new content is saved’ option for say Documents, any changes are not respected and do not work. I assume this is because the ‘Move’ via the ‘Location’ tab has been used previously used and changed Registry settings are preventing the new location from being offered.

Again from my experience, program settings giving a save location choice, over-rides options given by the ‘Change where new content is saved’.

For example, on a new install I manually create a Documents folder on the D: storage drive & copy all my document files to it from my old PC. IOW the documents were never on the new PC.

You mentioned “Documents in the future, when saved, will show the new default save location for you to use…” I presume the word processor will automatically find these.

Will the word processor automatically be directed to look in the D: storage drive for the old documents? IOW will the D: drive become the default location, or will I have to enter this every time I (or a family member) wants to open on old document?



Reply | Quote

MS Office Word, as an example, will save your documents to your user account’s Documents folder by default. This is generally C:\Users\NAME\Documents.
If the Documents folder location has been moved/changed correctly by the methods shown above, then MS Office Word will use the changed location as default.

Programs, such as Word/LO Writer, have their own independent settings for a user to direct the saved documents to. Making this change in the program settings will offer the location you have chosen as default, but a user can navigate to any location should they wish to via the Save dialog box.
The examples below are from Word 2019 & LO Writer which use my Documents folder by default. I created this folder in my ‘D Drive’ and then used the ‘Location/Move’ option to direct all saved documents to this Documents folder (offer this location as default).

Reply | Quote

Maybe I’m reading too much into this, but it seems you’e saying to go into C:\Users\NAME\Documents and use the Location/Move option.

But the pictures seem to indicate using the program’s independent settings to change the default path.

Does that mean I should change both settings?

Reply | Quote

The images above show the settings which show the documents are being offered the default save location that is the Documents folder in the D Drive – the folder location I had changed earlier by the Location/Move option.
The independent save settings in the word processors allow a user to change the default location to where ever you want and the program should respect that change.
Why don’t you just try it all out and see how it works?
If you don’t like what has happened, use the ‘Location > Restore Default’ option.

Reply | Quote

I agree with Moonshine; no need to muck with the registry.

HOWEVER, IIRC, it’s a good idea (?necessary?) to revert the locations back to default before doing a major (Feature) upgrade or “non-destructive reinstall”. Don’t know if this advice is still current – perhaps Fred Langa will enlighten us?

Zig

Reply | Quote

The names (labels) that are displayed by Explorer, and the storage locations to which they point, are stored in the Registry. See if you can correlate what you have in your Registry with the files’ structure that you want.

These are somewhat complex to wade through; don’t change them unless you REALLY understand what you are doing.
“Look, don’t touch.” – – – “You break it, you … may be in trouble.”

Regedit —

These are for C:\Users\Public\ …
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Shell Folders
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\User Shell Folders

HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\explorer\Shell Folders
HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\explorer\User Shell Folders

These are for C:\Users\[the currently logged-on user]\ …
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\Shell Folders
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\User Shell Folders

(Note: The following key exists but has no parallel settings to above.)
HKEY_CURRENT_USER\Software\Wow6432Node\Microsoft
